Basic Data
technical parameter
-
Oltage Range
450-850V
-
Cooling System
Motor: Oil cooled; Controller+small three electricity: water-cooled
-
ASIL Level
ASIL C
-
EMC Rating
Class 3
-
Bridge System
Maximum power and torque: @ 630V, 30s: 240kW/4800Nm Rated power: 100kW
-
Controller
SiC-Mosfet， Peak current: 420rms, CLTC efficiency: 98%
-
Motor
Oil cooled, permanent magnet synchronous, flat wire motor, peak efficiency of 97.5%
-
Reducer
Parallel axis reducer
-
Application Environment
-40°C~85°C
-
Length x Width x Height/mm
535x535x368
-
Weight/kg
104
-
speed ratio
12.003

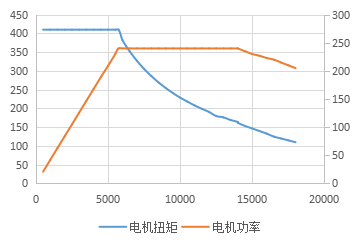

External characteristic curve
Product features
01
Key Technology
2.35kW/kg height domain control 10in1 integrated solution&common shell architecture, ultimate lightweight and miniaturization.
02
Ultimate Performance
90.6% motor&MCU&reducer high WLCT comprehensive working condition efficiency; The 22000rpm homemade motor adopts ultra-high speed, high-density flat wire oil cooling, low viscosity lubricating oil, segmented magnetic steel technology, with a continuous power of 70kW and a peak efficiency of 75%.
03
Powerful And Dynamic
3100Nm: using 11.742 speed ratio, wheel torque 3100Nm; 1873rpm: wheel speed 1873rpm
04
Reliable And Durable
6.6/11kW can adapt to charging and distribution systems in different markets around the world.
